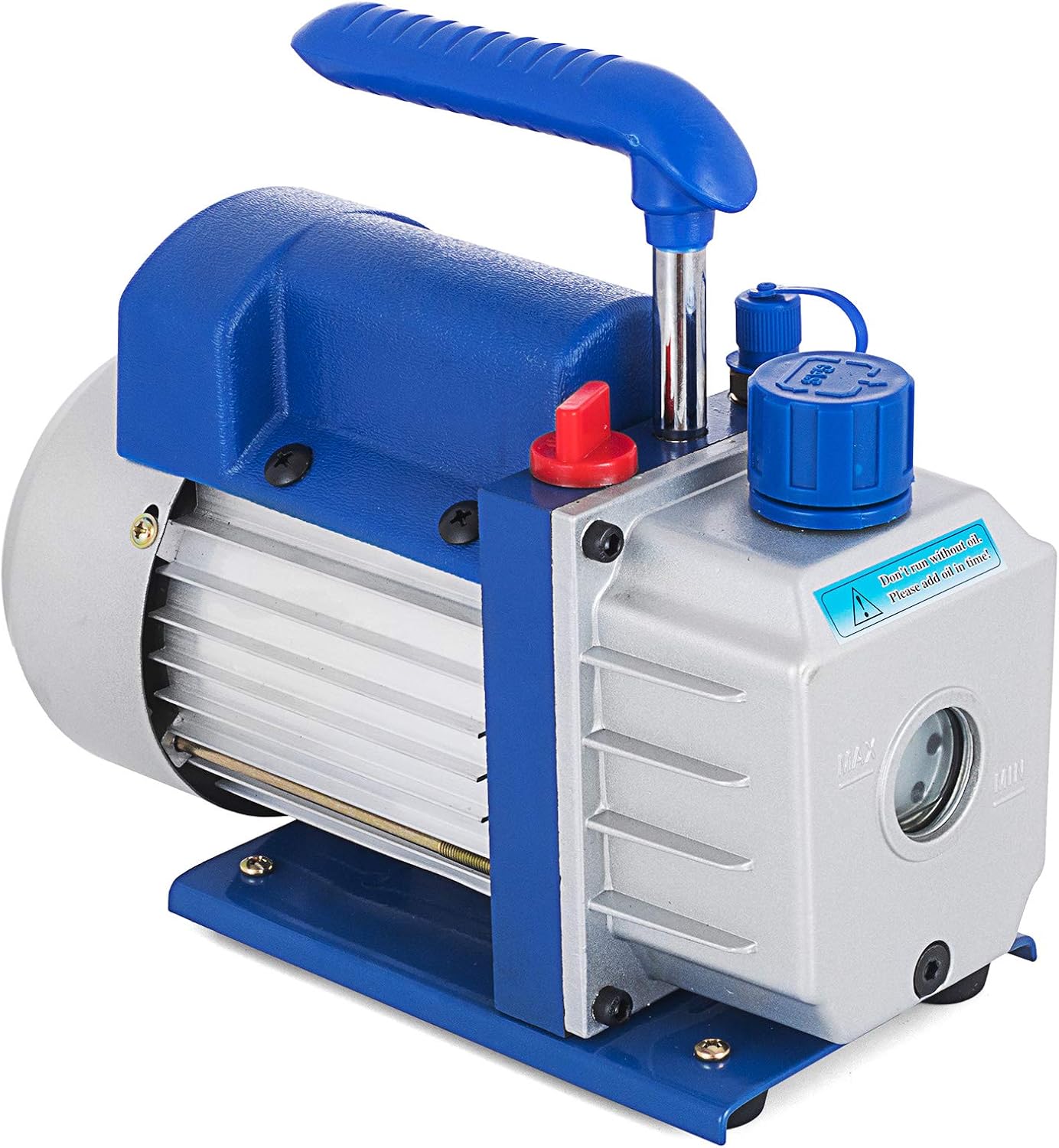

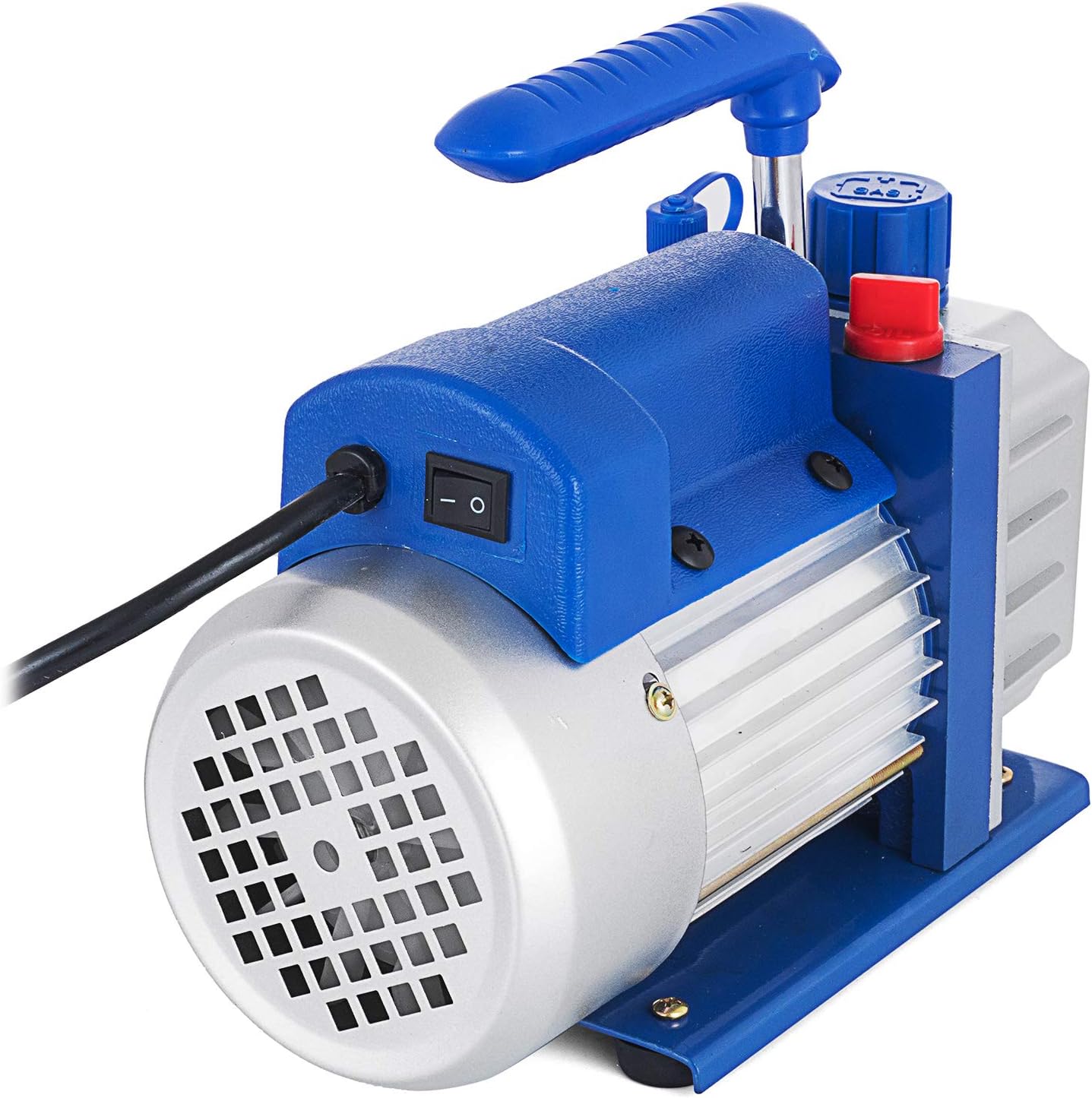

3.5 CFM Vacuum Pump Kit 1/4 HP Single Stage Vacuum Pump and R134a AC Manifold Gauge Set Kit for HVAC Air Conditioning Refrigeration Recharging

Vacuum Pump Features: High efficiency and low noise Heavyduty aluminum alloy casing Oil drain plug positioned at bottom of oil reservoir Internal high volume cooling fan for extended use Exhaust port with exhaust cap Oil sight glass for monitoring oil levels Non slip cushion handle Manifold Gauge Features: Compact & lightweight design Aluminum manifold body Adjusting high or low pressure Diaphragm valves with swivel seals for more positive seal and less wear Durable rubber gauge cover for added support and protection Comes with back hook for hanging the manifold gauge in place Designed to meet 1/4inch Standard SAE requirement for refrigerant permutation Application For: Air Condition (including automative applicatons) Vacuum Packing Printing Machinery Gasanalysis and hotforming plastic Jewelry Marking/Gluing Jobs Package Content 3.5 CFM 1/4 HP Vacuum Pump x 1 Manifold gauge x 1 Red high side hose x 1 Blue low side hose x 1 Yellow service hose x 1 Bottle of oil x 1 Black plastic box x 1

• Excellent A/C Maintenance-quickly and efficiently purge air conditioning and refrigeration systems of contaminants such as moisture and air. They are widely used for vacuum forming, scientific and printing industry, fiberglass infusion, anywhere a deep vacuum is needed
• Vacuum pump voltage : 110v/60hz.Power : 1/4HP.Free Air Displacement : 3.5 CFM.Operating pressure : 600 PSI.Burst pressure : 3000 PSI.Ultimate vacuum : 5Pa.Inlet port : 1/4 inch Flare.Hose connectors : 1/4 inch SAE.Hose length : 4 Feet.Compatibility : R134a, R410a, R22
• The vacuum pump is easy to maintain,the drain plug is located at the bottom of the oil storage tank.Oil level window for easy oiling-oil observation window allows you to monitor oil quality and oil level
• Manifold gauge set designed specially to measure pressure in refrigeration equipment.Carry box is included for convenient storage and easy transportation
• Efficient cooling-built-in large-capacity cooling fan can extend the use time.Portable non-slip contoured handle
• Fit type: Universal
