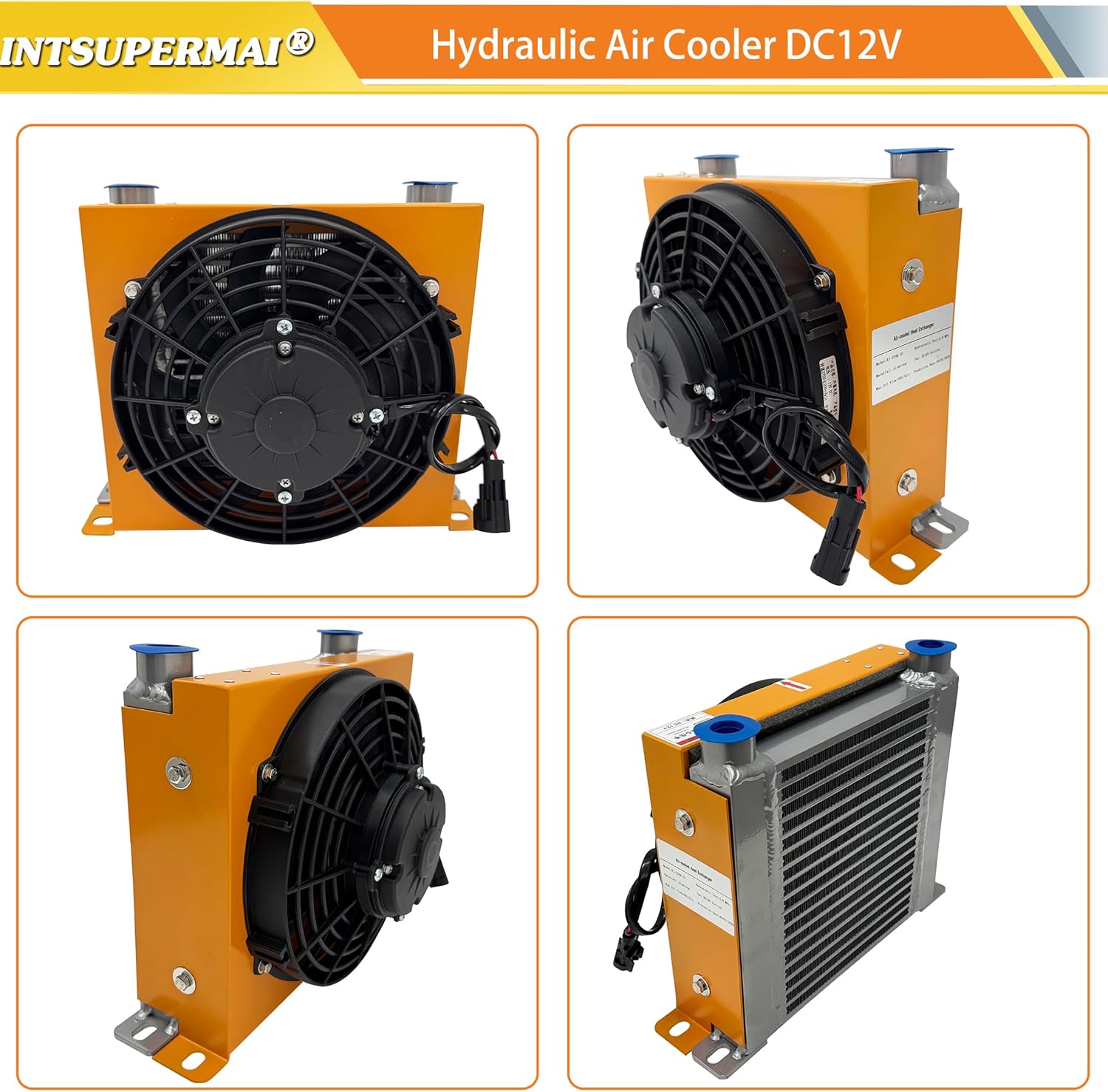

INTSUPERMAI Aluminum Hydraulic Air Cooler – 65L/min Bidirectional Flow Oil Cooler for CNC/Construction Machinery, Compact & ≤2MPa High-Pressure Resistant DC12V 84W

The hydraulic air cooler is a type of heat exchanger that utilizes air as the cooling medium, forcibly dissipating heat from internal media through fans. This equipment emphasizes heat dissipation with stable performance. It can cool fluids non-corrosive to aluminum, such as hydraulic oil, antifreeze, compressed air, etc., and may also use treated soft water. It features a compact structure, lightweight design, high heat dissipation efficiency, and easy installation‌. Product Parameters Fan voltage: DC12V Fan power: 84W Current: ≤7A Oil hole diameter: Rc3/4" Rate of flow: 65L/min(17.2GAL/min) Working pressure: ≤2MPa Exterior cooling area: 1.8m2 Cooling capacity: 1.8KW Speed: 2700±200 r/min Material: Aluminum

• High-Efficiency Aluminum Air-Cooled Hydraulic Cooler​: Featuring a 1.8m² cooling area and 1.8kW thermal capacity, this unit leverages advanced aluminum alloy construction to dissipate heat rapidly while maintaining stable performance under heavy loads
• 65L/min Bidirectional Flow for Versatile Applications​: Designed for CNC machines and construction equipment, the Rc3/4" oil ports enable flexible installation with bidirectional flow, supporting 2MPa pressure resistance
• Lightweight Compact Design for Mobile Machinery​: Weighing under 12.1bs (5.5 kg) and measuring 15" x 13" x 9", this cooler integrates seamlessly into tight spaces, ideal for mobile hydraulic systems requiring portability
• Bidirectional Flow: Both left and right ports of this unit can serve as either oil inlet or outlet. The hydraulic oil inside the cooler is power-driven, enabling bidirectional flow (left-in/right-out or right-in/left-out)‌

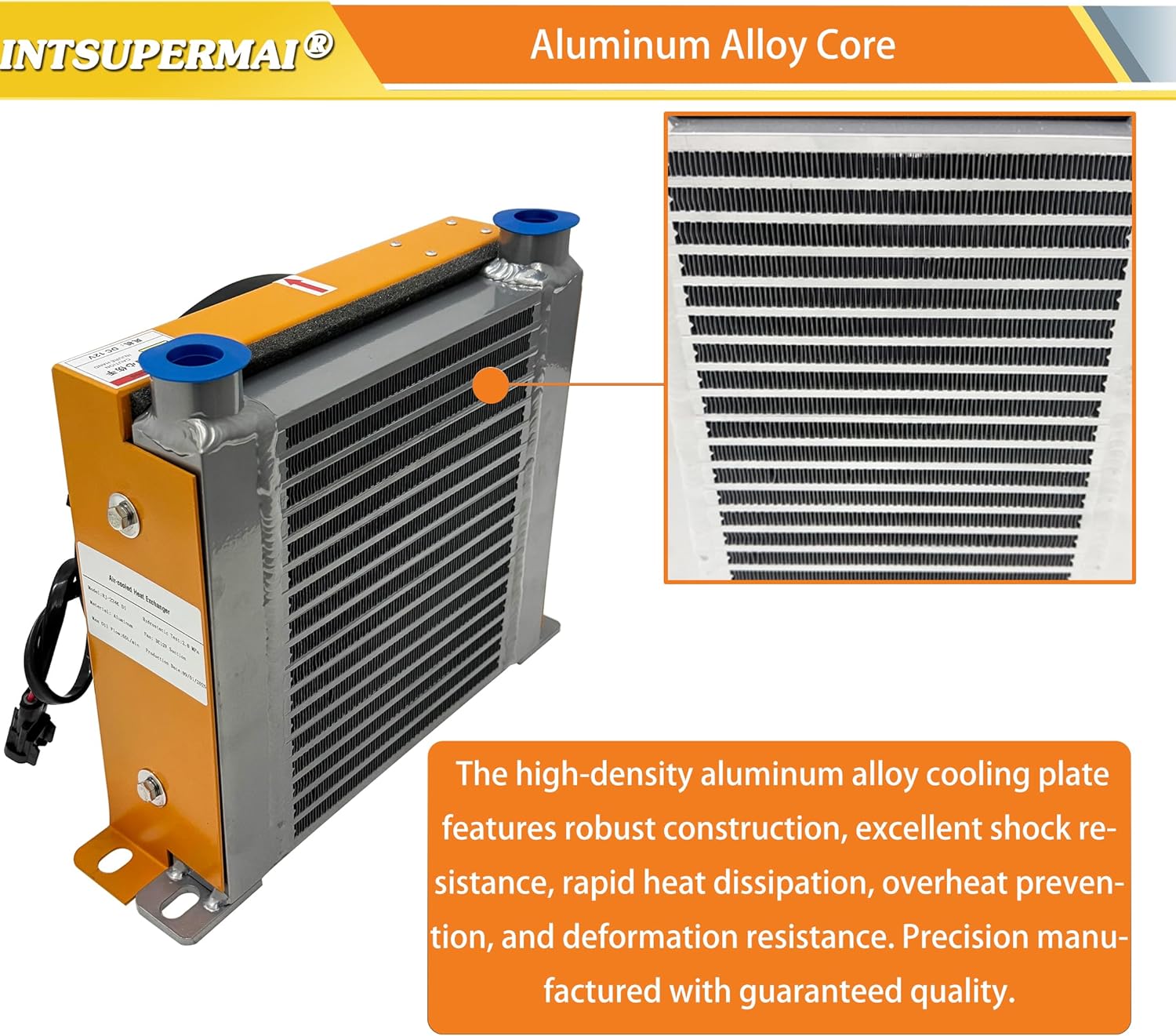

• Aluminum Alloy Core: The high-density aluminum alloy cooling plate features robust construction, excellent shock resistance, rapid heat dissipation, overheat prevention, and deformation resistance. Precision manufactured with guaranteed quality‌
• High Quality Fan: The fan features stable performance, steel nuts, an overall leak-proof design, aesthetic durability, and enhanced heat dissipation, effectively supporting the long-term operation of the hydraulic air cooler‌
• Mounting Hole: Wiring terminal of the fan: This terminal is plugged into a DC12V storage battery to supply power to the cooler. Simply plug with any DV12V power supply for ultimate convenience‌
