with Brake 600W AC Servo Motor Kit, CNC 220V 3.5A 3000rpm L3000 17-bit Encoder RS485 Servo Motor Driver Controller Kit for CNC Engraver Milling Machine/Robot
Product details
| Management number | 221432513 | Release Date | 2026/05/03 | List Price | US$51.60 | Model Number | 221432513 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

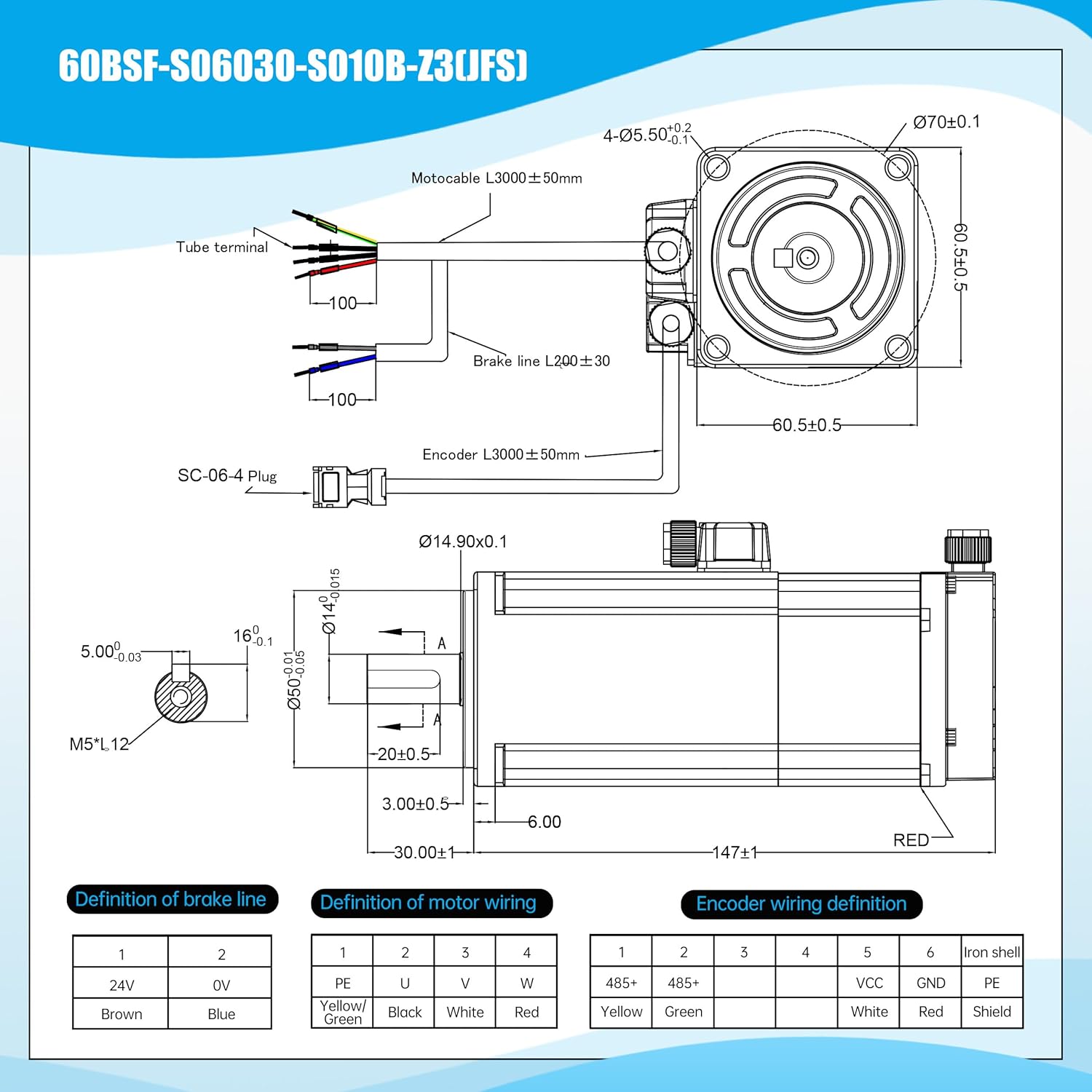

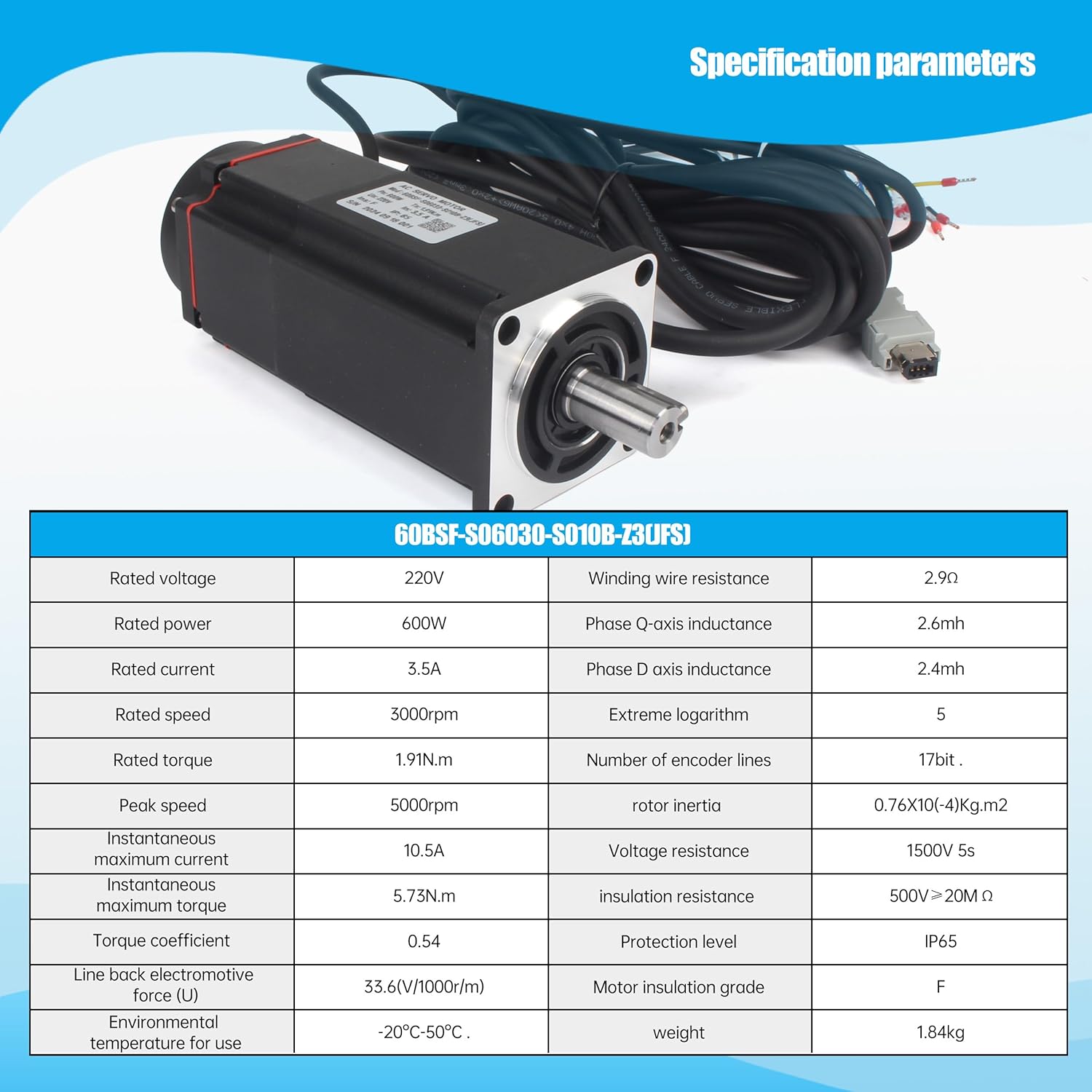

- 【Motor Parameters】Model: 60BSF-S06030-S010B-Z3(JFS); With brake; Power: 600W; Number of poles: 5 pairs; Rated power supply: 220V; Rated speed: 3000r/min; Peak speed: 5000r/min; Rated torque: 1.91N.m; Max torque: 5.73N.m; Rated current: 3.5A; Max current: 10.5A;Protection structure: IP65
- 【Driver Parameters】Model: M864S; Input voltage: AC220V (50/60Hz); Power:0.1KW-1KW;Cooling method: Heat dissipation air cooling; Encoder type: 17 bit magnetic encoder.Control mode: SVPWM control; Operating temperature: 0℃-+55℃; Storage temperature: -20℃-80℃; Protection level: IP54
- 【17 bit Encoder】Matching with 17 bit single loop absolute value encoder, 5 pairs of poles,to ensure the accuracy ; With Strong applicability,all input/output ports can be freely defined and have strong applicability,a variety of intelligent monitoring functions and operation panels are convenient for customers to debug and diagnose.
- 【Driver Functions】Over voltage,over load,over current,Under voltage,encoder exception,position error etc.Position control, speed control, torque control Modbus communication can be converted to meet common applications,standard RS485 communication function, realize upload and download network control.The internal simple PLC function, in some simple control occasions, PLC can be completely omitted, and a lower cost solution can be realized.
- 【Application】Widely apply to Industrial manipulator,Engraving Carving equipment,Semiconductor equipment,Measuring equipment,Medical equipment,Industrial robot and other automated equipment on the market
| Voltage | 220 Volts |
|---|---|
| Wattage | 600 watts |
| Brand Name | YIDOFENG |
| Part Number | 60BSF-S06030-S010B-Z3(JFS) |
| Manufacturer | KAKA-US |
| Material Type | Metal |
| Included Components | AC Servo Motor + Servo Drive +Cable |
